Lattice Topped Fence

Balance privacy and daylight with solid timber panels finished by an open lattice top. Real Fencing builds the height, pattern and gates around your home and outdoor living areas.

Call 027 252 9063

1-2 Day Install

Google Reviews★★★★★

50+ Reviews

Local Builders

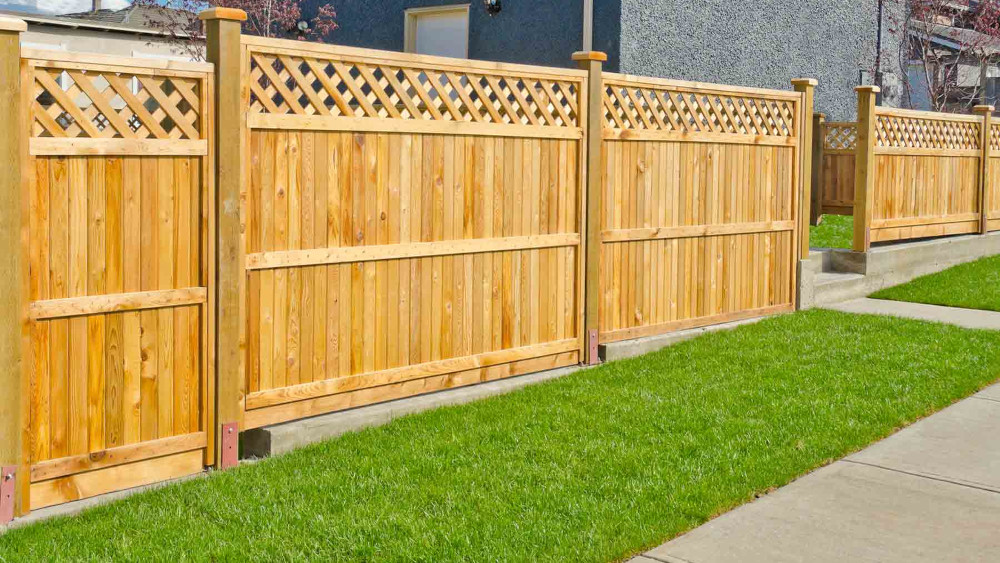

A lattice-topped fence combines a private lower panel with a lighter upper edge. It can screen seating areas and neighbouring windows while allowing sun and breeze around the top. The structure can be strengthened for exposed wind zones and detailed with suitable treated timber for wet clay, coastal moisture or alpine freeze-thaw cycles.

How the Fence Looks From Each Side

See how the private lower panel and daylight-friendly upper grid appear on either side.

Presentation Side

Outside, the solid base forms a private boundary and the lattice gives the top line a lighter architectural detail.

Property Side

Inside, the rails support the lower boards while the upper grid admits light and can carry climbing plants.

Configure the Fence for Your Site

Set the solid-panel height, lattice pattern, top finish, slope treatment and gate positions to match the way you use the property.

Top Finish

Choose your fence top finish #### Flat Top Clean, modern finish #### Post Caps Decorative caps for enhanced appearance

Ground-Level Approach

How your fence follows the ground #### Sloped (Racked) Follows ground slope naturally #### Stepped Steps down in sections

Access Openings

Complete your fence with matching gates #### Pedestrian Gates Sizes: 900mm, 1200mm #### Driveway Gates Sizes: 3m, 4m, 5m

Construction Details and Build Choices

Review the three construction levels below. Post size, lattice framing, fixings and coatings can be adapted to wind exposure and local ground conditions.

| Specification | Lifestyle | Skinny Investor | Investor | | --- | --- | --- | --- | | **Post** | Ex 100×100 laminate | Ex 100×75 MG | 100×75 RS | | **Rail** | Ex 100×50 MG kiln dried | Ex 75×50 MG | 75×50 RS | | **Paling (Base)** | Ex 150×25 MG KD | 150×20 MG | 150×20 RS | | **Lattice Top** | Diagonal, pre-primed MG KD batten | Diagonal, 50×10 MG batten | Flat top, 50×10 batten | | **Cap** | Bevelled cap, pre-primed | Ex 100×25 deck cap | Optional flat cap | | **Concrete** | !Yes | !Yes | !Yes | | **Nails** | !Yes | !Yes | !Yes | | **Labour** | !Yes | !Yes | !Yes |

Is This Timber Style Right for You?

Check these benefits and common uses against your preferred balance of seclusion, sunshine and planting.

What You Gain

- Private solid base with an open top - Added height with less visual weight - Square or diagonal lattice patterns - Compatible with planting and matching gates

A Good Match For

- Outdoor seating and entertaining areas - Side and rear residential boundaries - Gardens needing partial screening - Homes wanting privacy without lost light
